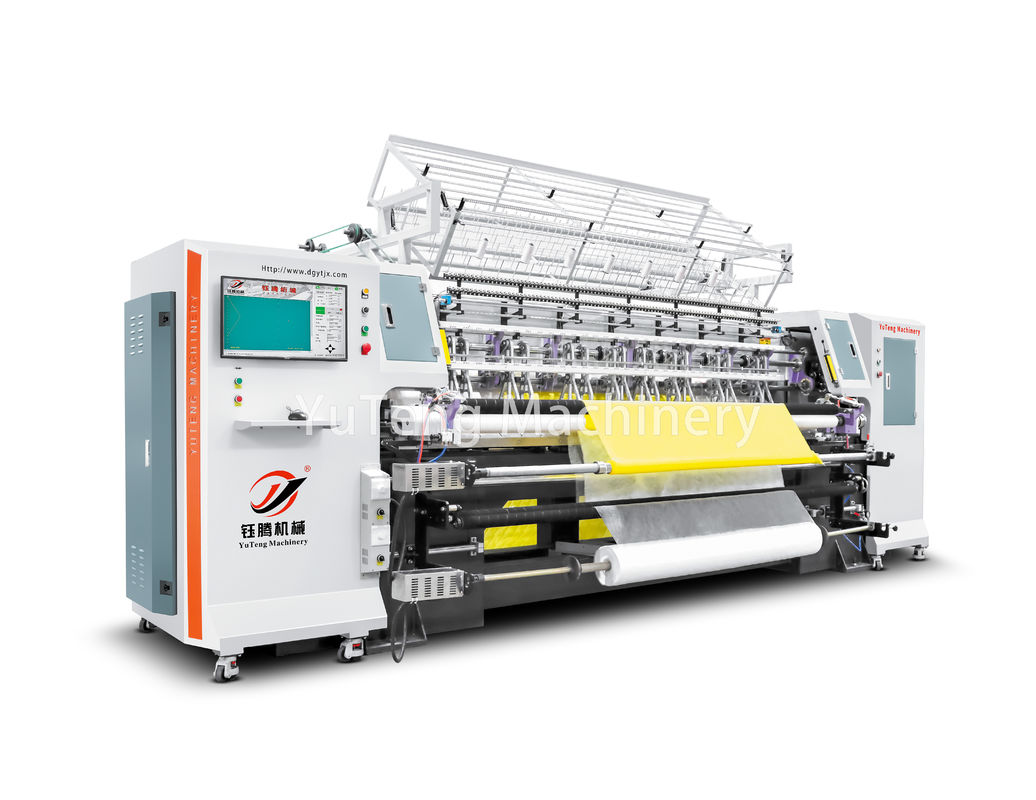

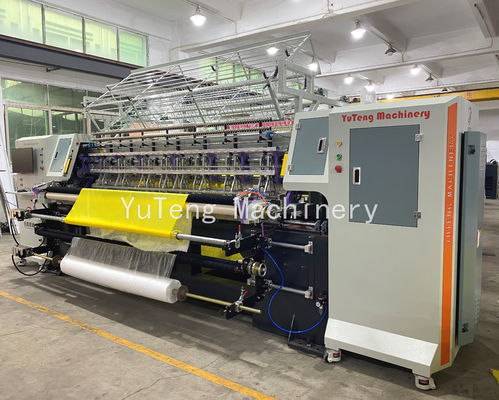

Computerized Multi Needle Ultra High-Speed Lock Stitch Shuttle Multi Needle Quilting Machine
جزئیات محصول:
| محل منبع: | چین |
| نام تجاری: | Yuteng |
| شماره مدل: | سری YGH |
پرداخت:
| مقدار حداقل تعداد سفارش: | 1 ست |
|---|---|
| جزئیات بسته بندی: | فیلم پلاستیکی و تخته کاغذ |
| شرایط پرداخت: | t/t |
|
اطلاعات تکمیلی |
|||
| نام ماشین: | دستگاه لحاف دوخت چند سوزن دوخت قفل کامپیوتری با سرعت بالا | بازنویسی در حال خروج: | ارائه شده |
|---|---|---|---|
| عرض لحاف (متر): | 1.65/2/2.45 | ضخامت دوخت: | در عرض 25 میلی متر |
| سرعت تولید （متر در ساعت: | 20-200 | مدل شاتل: | 7#/10# |
| مدل سوزن: | 14#/16#/19# | ولتاژ: | 380V/220V |
توضیحات محصول
Ultra High speed Computer Shuttle Multi-needle Quilting Machine
Machine Purpose:
It is widely for quilting high-quality garments, bedding covers, textile, leather, shoes, cap, bags, vanity, gloves, sleeping bag, seat cover and wall decoration etc.
Special Features:
1.Comprehensively upgrade and strengthen each transmission structure to truly realize high-speed operation and stable production.
2.The external computer control system can effectively reduce the adverse effects of high-speed operation on the electronic control.
3. The computer can adjust the speed of 100-1400 rpm, and the stitch adjustment is 2-12mm.
4. The speed, stitch and various pattern compensation functions can be adjusted arbitrarily during the operation of the equipment.
5. The system is equipped with a "return” function to solve the work of missing quilting and stitching between processing and changing shuttles.
6. The needle row movement adopts servo drive mode, and the spindle adopts frequency conversion control.
7. Dual clutch device, to solve the synchronization problem of rollers in front and back.
8. 360 degree free quilting come with unlimited multi-span quilting independent patterns.
9. Automatic thread-break detection unit. Infrared sensor make sure more safety operation.
Self-developed Yuteng quilting system
Various languages can be selected to operate the system
Aluminum alloy needle bar frame structure, strong and durable.
Servo drive mode, frequency conversion control
Machine Specification:
| Model | YGH64 Series | YGH80 Series | YGH96 Series | |||
| 64-2-3(S/B) | 64-3-4/4.5/5/6(S/B) | 80-2-3(S/B) | 80-3-4/4.5/5/6(S/B) | 96-2-3(S/B) | 96-3-4/4.5/5/6(S/B) | |
| Dimension(L*W*H) | 4500*1500*1800mm | 4500*1500*1800mm | 4900*1500*1800mm | 4900*1500*1800mm | 5400*1500*1800mm | 5400*1500*1800mm |
| Quilting Width | 1650mm | 1650mm | 2000mm | 2000mm | 2450mm | 2450mm |
| The Number of Needle rows | 2 | 3 | 2 | 3 | 2 | 3 |
| Space between needle rows | 3" | 3"+1"/1.5"/2"/3" | 3" | 3"+1"/1.5"/2"/3" | 3" | 3"+1"/1.5"/2"/3" |
| Space between needle | 25.4mm | 25.4mm | 25.4mm | 25.4mm | 25.4mm | 25.4mm |
| X-axis Travel(Inch) | 152.4mm(6'') | 152.4mm(6'') | 152.4mm(6'') | 152.4mm(6'') | 228.6mm(9") | 228.6mm(9") |
| Thickness of quilting | ≤25mm | ≤25mm | ≤25mm | ≤25mm | ≤25mm | ≤25mm |
| Stitch length | 2-12mm | 2-12mm | 2-12mm | 2-12mm | 2-12mm | 2-12mm |
| Production Speed(m/hour) | 20-200(m/hour) | 20-200(m/hour) | 20-200(m/hour) | 20-200(m/hour) | 20-200(m/hour) | 20-200(m/hour) |
| Shuttle Model | 7#/10# | 7#/10# | 7#/10# | 7#/10# | 7#/10# | 7#/10# |
| Needle Model | 14#,16#,19# | 14#,16#,19# | 14#,16#,19# | 14#,16#,19# | 14#,16#,19# | 14#,16#,19# |
| Quilting Speed(r/min) | 100-1400(r/min) | 100-1400(r/min) | 100-1400(r/min) | 100-1400(r/min) | 100-1400(r/min) | 100-1400(r/min) |
| Voltage(AC) | 380V/50HZ , 220V/60HZ ,3-Phase | 380V/50HZ , 220V/60HZ ,3-Phase | 380V/50HZ , 220V/60HZ ,3-Phase | 380V/50HZ , 220V/60HZ ,3-Phase | 380V/50HZ , 220V/60HZ ,3-Phase | 380V/50HZ , 220V/60HZ ,3-Phase |
| Total power | 5KW | 5KW | 6KW | 6KW | 7KW | 7KW |
| Gross weight | 5800KG | 5800KG | 6100KG | 6100KG | 6600KG | 6600KG |
*Customized model are available to meet client's various needs.
About Our Factory:
We have a professional R&D department, spare parts workshop and assembly workshop . The quality of the machine is strictly controlled by us.
Production Line Combination:
Customized quilting machinery + Computerized panel cutter machine
Wadding feeding machine + Computerized lock stitch multi-needle quilting machine + Computerized fillet cutter machine
Computerized lock stitch multi-needle quilting machine + Four-side sewing and cutting machine
Our Services:
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.(Fees need to be negotiated)
* Warranty: 1 year
Related Machine:
Computerized panel cutter machine
Four-side sewing and cutting machine & edge collecting machine
Fabric roller machine
Bobbin winder machine
Frequently Asked Questions:
Q: What is the brand name of this quilting machine?
A: The brand name of this quilting machine is YuTeng.
Q: Where is this Lock Stitch Quilting Machine manufactured?
A: This Lock Stitch Quilting Machine is manufactured in China.
Q: What is your payment terms?
A:T/T 30% deposit in advance, 70% balance before shipment.
Q: What is the warrany?
A: One year.(All parts are guaranteed one year for non-human-made damage)
Welcome to contact with us,for more information of quilting machine. ^_^
