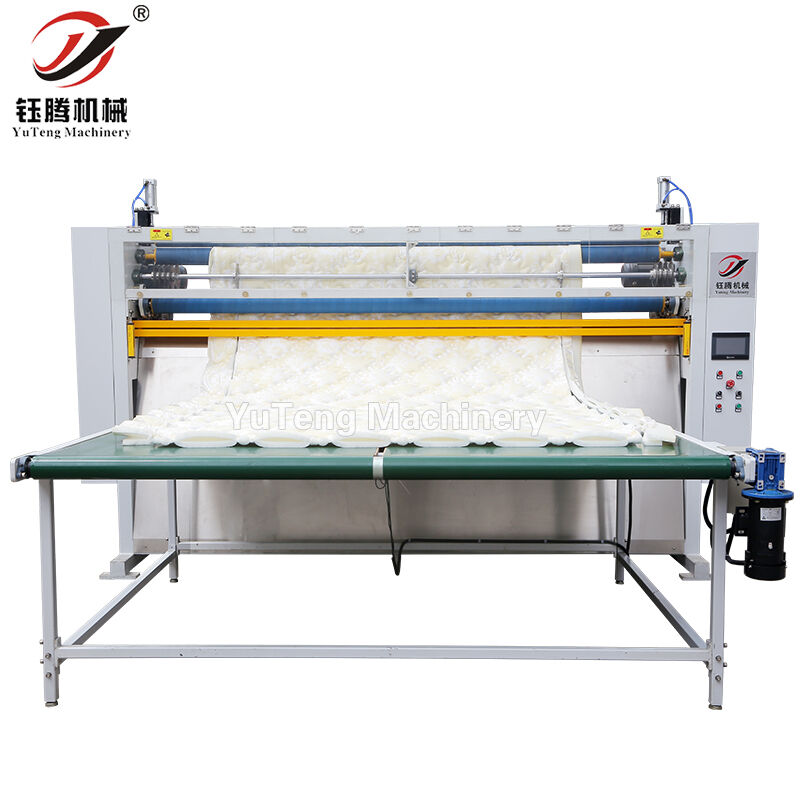

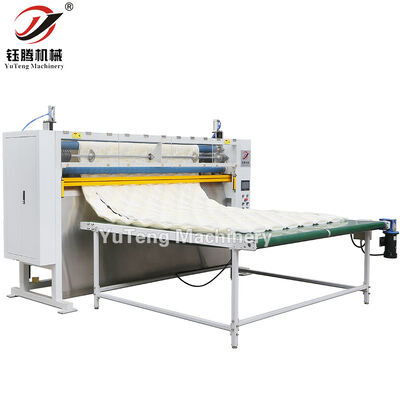

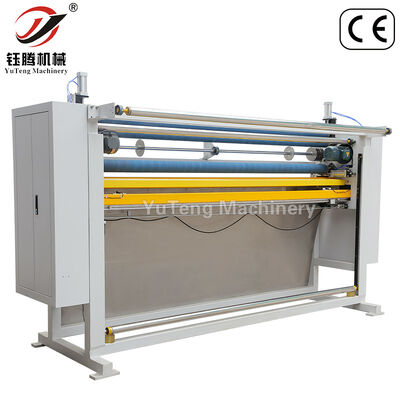

Economical Mattress Edge Fabric Cutting Machine for Quilting Machine
جزئیات محصول:
| محل منبع: | گوانگدونگ، چین |
| نام تجاری: | YUTENG |
پرداخت:
| مقدار حداقل تعداد سفارش: | 1 |
|---|
|
اطلاعات تکمیلی |
|||
| وزن: | 850 کیلوگرم | ولتاژ: | 220 ولت ، 380 ولت |
|---|---|---|---|
| حداکثر ابعاد X: | 2400 میلی متر | حداقل ابعاد X: | 300 میلی متر |
| حداکثر ابعاد Y: | 2400 میلی متر | حداقل ابعاد Y: | 300 میلی متر |
| ابعاد ماشین: | 3700mm*1100mm*1850mm | فشار هوا: | 0.4 ~ 0.8MPa |
| ضخامت مواد: | 3-80 میلی متر | سرعت: | 10 (M/min) |
| قدرت: | 2.6 کیلووات | اجزای اصلی: | PLC ، موتور |
| اندازه صفحه نمایش: | صفحه نمایش 7 اینچی لمسی | فرکانس: | 50 هرتز ، 60 هرتز |
| مکانیسم خوراک: | تخلیه مکانیکی تسمه نقاله | ||
| برجسته کردن: | economical mattress edge fabric cutter,quilting machine fabric cutting tool,computerized mattress edge cutting machine,quilting machine fabric cutting tool,computerized mattress edge cutting machine |
||
توضیحات محصول
Economical Mattress Edge Fabric Cutting Machine for Quilting Machine
Product Main Features
- 7" touch screen with large display for easy operation
- Hidden slitting blades for enhanced convenience and safety
- Electric controls for length and width of cross cut for user-friendly operation
- Feed-in top with article points for pressure roller ensures even pressure and level feeding
- Y-dimension with encoder for precise length counting
- Conveyor belt mechanical discharge for convenient material folding and labor savings
Purpose
This machine is designed for crosscutting, slitting, and edge trimming quilted fabric. It can operate in tandem with quilting machines and rolling devices, or function independently.
Technical Parameters
| Edge trim/Slitters | |
|---|---|
| The Max.X dimension: | 2400mm |
| The Min.X dimension: | 300mm |
| Cross cut | |
| The Max.Y dimension: | 2400mm |
| The Min.Y dimension: | 300mm |
| Power supply: | 380V/50HZ 220V/60HZ |
| Machine dimension (L*W*H): | 3700mm*1100mm*1850mm |
| Weight: | 850kg |
| Operating air pressure: | 0.4~0.8Mpa |
| Thickness: | 3-80mm |
| Speed: | 10(M/Min) |
| Power: | 2.6KW |

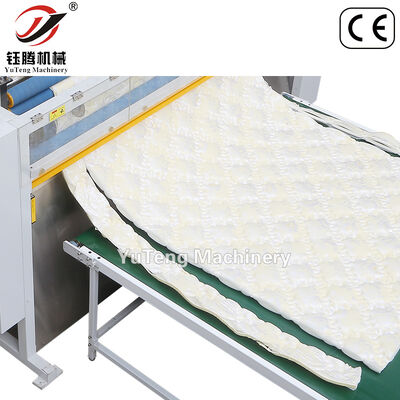

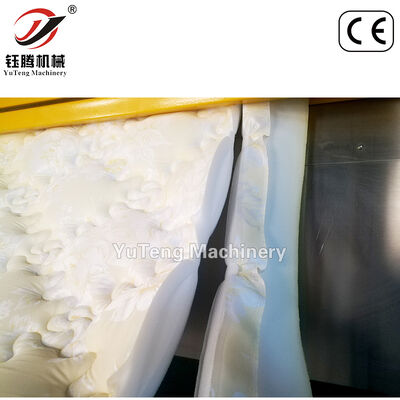

Effect Diagram
Certificate
Company Information
Ordering & Service Details
- Delivery Time: Within 35 days upon receipt of 30% deposit
- Payment Terms: T/T 30% deposit in advance, 70% balance before shipment
- Delivery Terms: FOB, CIF, CFR, etc.
- After-sale Services: Comprehensive support with dedicated customer service
- Warranty: One year
- Customization: Available to meet specific client requirements
